Specifications:
  • Vin 100 mV to 4.5 V
  • Cold start 3 μW @ 275 mV
  • Pin 3 μW to 570mW
  • Pout 30mA in low power mode, 60 mA in high power mode - Selectable load voltage from 1.2V to 3.3V
  • Source Regulation MPP Tracking
  • Package QFN40
    5 x 5 mm

Ultra-low-power start-up:

  • Cold start from 275 mV input voltage and 3 μW input power (typical)

Very efficient energy extraction

  • Open-circuit voltage sensing for Maximum Poper Point Tracking (MPPT)
  • Selectable open-circuit voltage ratios from 60% to 90% or fixed impedance
  • Programmable MPPT sensing period
  • MPPT voltage operation from 100mV to 4.5 V

Adaptive and smart energy management:

  • Switches automatically between boost, buck-boost and buck operation, to maximize energy transfer from its input to the output
  • Automatically selects between the source, storage element
  • Automatically select the output between the system, the load and the storage element

Load supply voltage:

  • Current drive capability: 30 mA in low power mode, 60 mA in high power mode
  • Selectable load voltage from 1.2 V to 3.3 V

Battery protection features

  • Selectable over-charge and over-discharge protection for any type of rechargeable battery or (super)capacitor
  • Fast super-capacitor charging
  • Dual cell super-capacitor balancing circuit

Smallest footprint, smallest BOM:

  • Only four external components are required
  • One 10 μH inductor
  • Three capacitors: one 10 μF, one 15 μF, one at least 40 μF

AEM10330 Datasheet Download
AEM10330 Product Brief Download
CAD files about the AEM10330 / Simplified schematic and BOM Download
Configuration Tool AEM10330 Download
e-peas-energy-harvesting-pmic Where to order

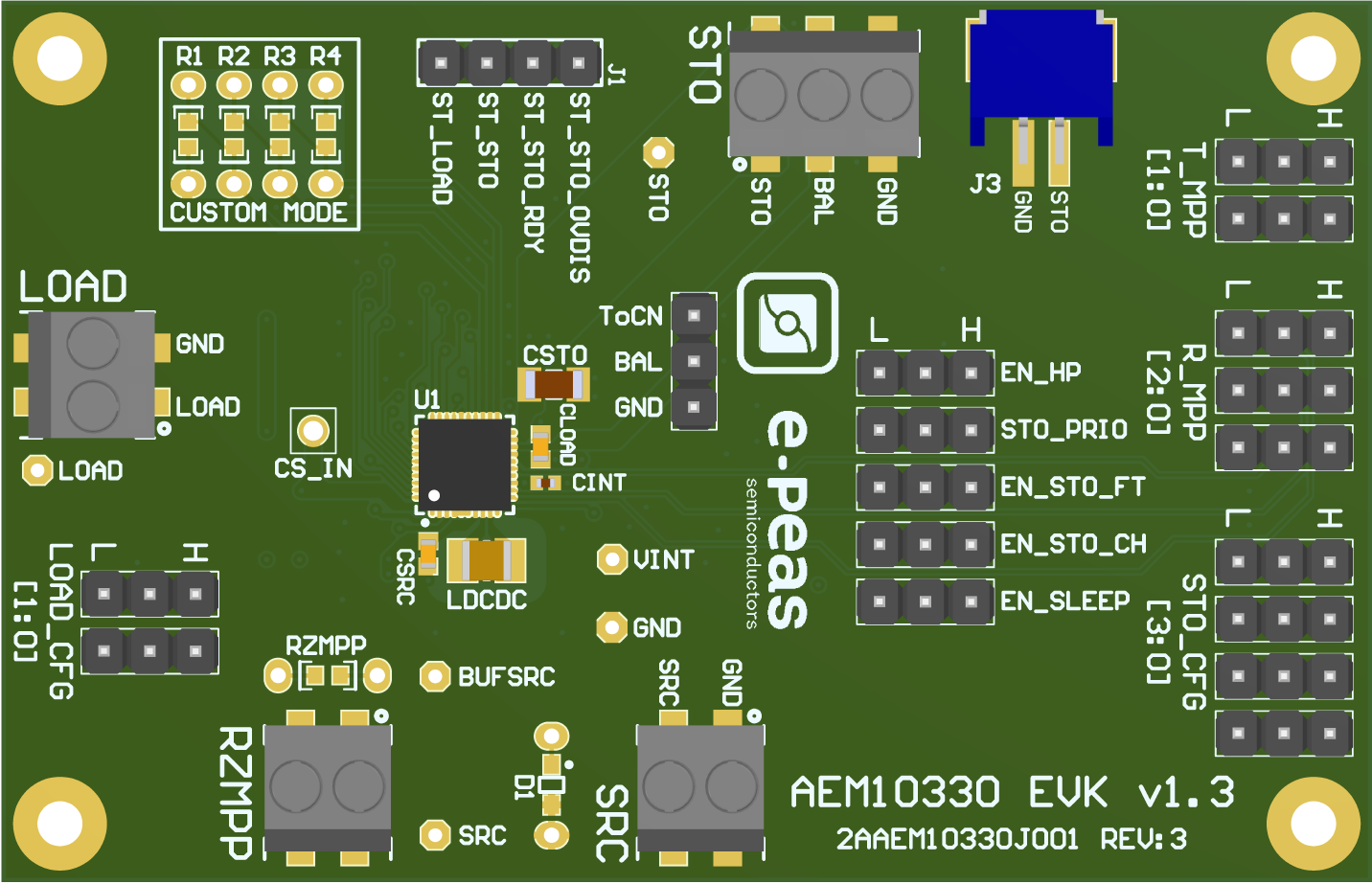

The evaluation board includes the AEM10330 and its 4 passive components and has jumpers for an easy configuration use. This evaluation board is a printed circuit board (PCB) featuring all the needed components to operate the AEM10330 integrated circuit (IC). It allows users to test the e-peas IC and analyze its performances in a laboratory-like setting.

It’s built with easy connections to the energy harvester, the storage element, and the load. It also provides all the configuration access to set the device in any one of the modes described in the datasheet. The control and status signals are available on standard pin headers, allowing users to wire for any usage scenario and evaluate the relevant performances. The evaluation board is a plug and play, intuitive and efficient tool for making the appropriate decisions (component selection, operating modes, etc) for the design of a highly efficient subsystem in your target application.

More detailed information about AEM10330 features can be found in the datasheet.
AEM10330 Evaluation Board Quick Start Guide Download
AEM10330 User Guide Download

  • EVALUATION BOARDS
e-peas-energy-harvesting-pmic Where to order
The evaluation board includes the AEM10330 and its 4 passive components and has jumpers for an easy configuration use. This evaluation board is a printed circuit board (PCB) featuring all the needed components to operate the AEM10330 integrated circuit (IC). It allows users to test the e-peas IC and analyze its performances in a laboratory-like setting.

It’s built with easy connections to the energy harvester, the storage element, and the load. It also provides all the configuration access to set the device in any one of the modes described in the datasheet. The control and status signals are available on standard pin headers, allowing users to wire for any usage scenario and evaluate the relevant performances. The evaluation board is a plug and play, intuitive and efficient tool for making the appropriate decisions (component selection, operating modes, etc) for the design of a highly efficient subsystem in your target application.

More detailed information about AEM10330 features can be found in the datasheet.
AEM10330 Evaluation Board Quick Start Guide Download
AEM10330 User Guide Download
