AEM15820
High-efficiency wide input power range with hybrid boost PMIC and DCDC output
e-peas’ AEM15820 is a high-efficiency energy harvesting PMIC that maximizes power extraction from both indoor and outdoor environments while offering flexible and intelligent power management. It supports MPP conversion from a harvester in a wide input power range, ensuring adaptability to various environments.
With ultra-low-power cold start, it operates from minimal available energy and monitors power flow to and from the storage element. Its configurable protection levels, thermal monitoring, and dual configuration via GPIO or I²C ensure compatibility and control. The AEM15820 also include a 5 V storage charger, a wide-range regulated DCDC output, and a shipping mode to prevent energy loss.
Optimized for efficiency and reliability, the AEM15820 is ideal for versatile energy harvesting applications requiring smart power management.
Product Information
Products
Harvester input
- Constant Voltage or MPPT Source Regulation
- High-Efficient Hybrid Boost Converter
- 300 mV to 4.34 V
- Up to 1 A
- Open Circuit Voltage Up to 4.6 V
- Cold Start from 5 µW / 275 mV
Storage element
- 2.4 V to 4.59 V
- Configurable Protection Levels
- Temperature Protection
Load output
- High-Efficient Buck Converter
- 0.6 V to 3.3 V
- Up to 100 mA
Extra features
- I²C Interface
- Average Power Monitoring (APM)
- 5 V Charger Input
- Shipping Mode
Package
- QFN40 5x5mm
Features and benefits
Harvester Input
- Hybrid boost architecture for wide input power range
- Efficiency up to 97 % from the source
- Harvests from 300 mV after cold start
- Automatic low-power / high-power transition
- Up to 1 A current extracted from the source
Constant Voltage or MPPT Source Regulation
- Both modes are available to ensure optimal harvesting from various harvesters
Ultra-Low Power Cold Start
- Cold start from 5 µW / 275 mV
Configurable Storage Element Protection Levels
- Configurable overdischarge, charge ready and overcharge protections to support a wide range of rechargeable storage element types (LiC, Li-ion, LiPo, Li-ceramic pouch…)
Configurable Temperature Protection
- Storage element protection against over-temperature and under-temperature during charging and discharging, independently
Regulated Output for Application Circuit
- Buck converter with efficiency above 90 %
- Selectable output voltage between 0.6 V and 3.3 V
- Output current up to 100 mA
System Configuration by GPIO or I²C
- System settings are dynamically configurable through GPIO or I²C (Fast Mode Plus)
- System data is available through I²C
Average Power Monitoring (APM)
- Measurement of the energy transferred to the storage element from the hybrid boost converter
- Measurement of the energy drained from the storage element to supply the application circuit
- Measurement of the 5 V charging duty cycle
5 V Charger
- Extra charging input for 5 V power supplies
- Configurable current limit up to 135 mA
- Provides a fast charging alternative when no source is available for a long time
Shipping Mode
- Storage element charge and discharge disabling during shipment
Block Diagram
Evaluation boards

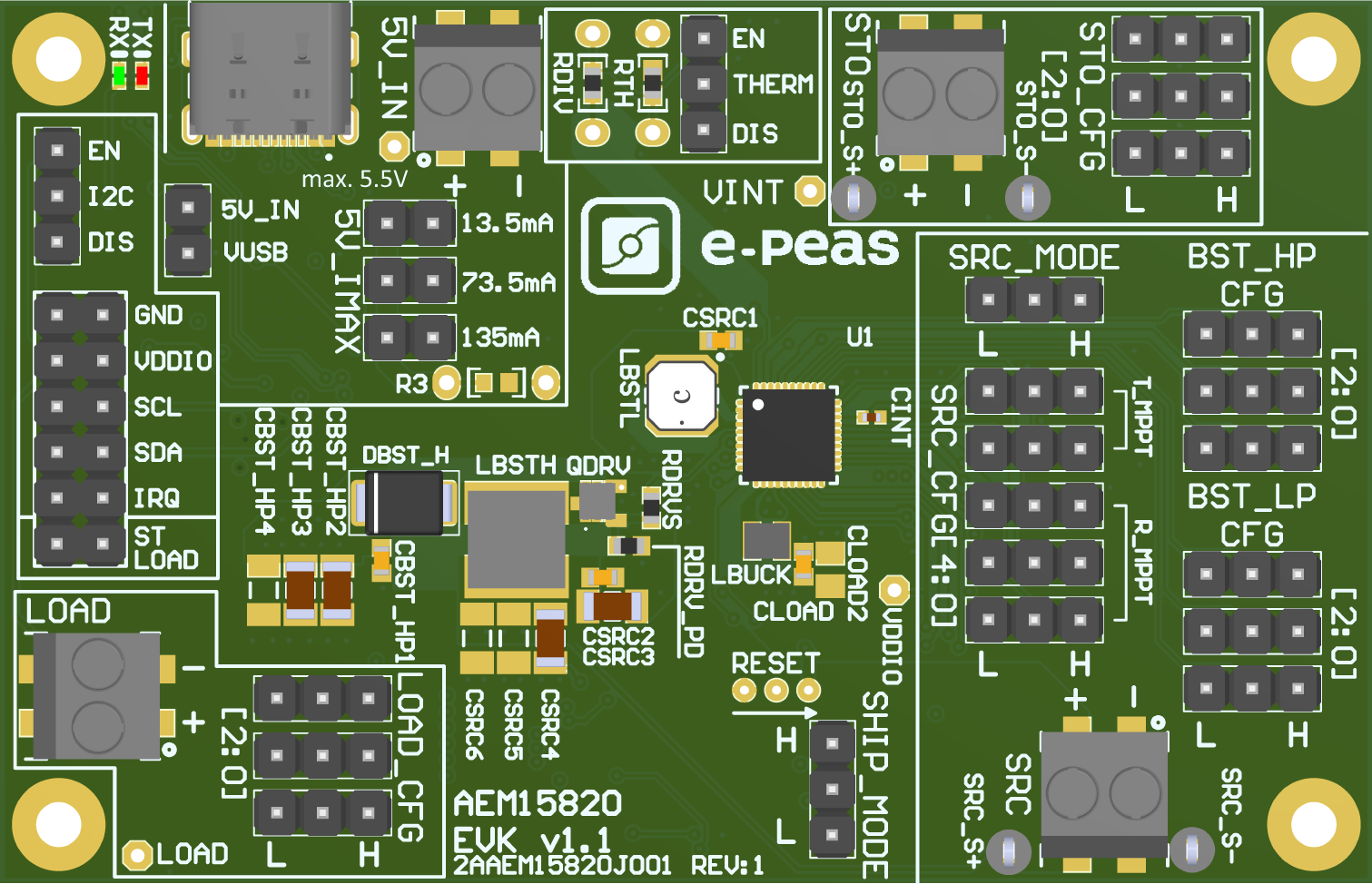

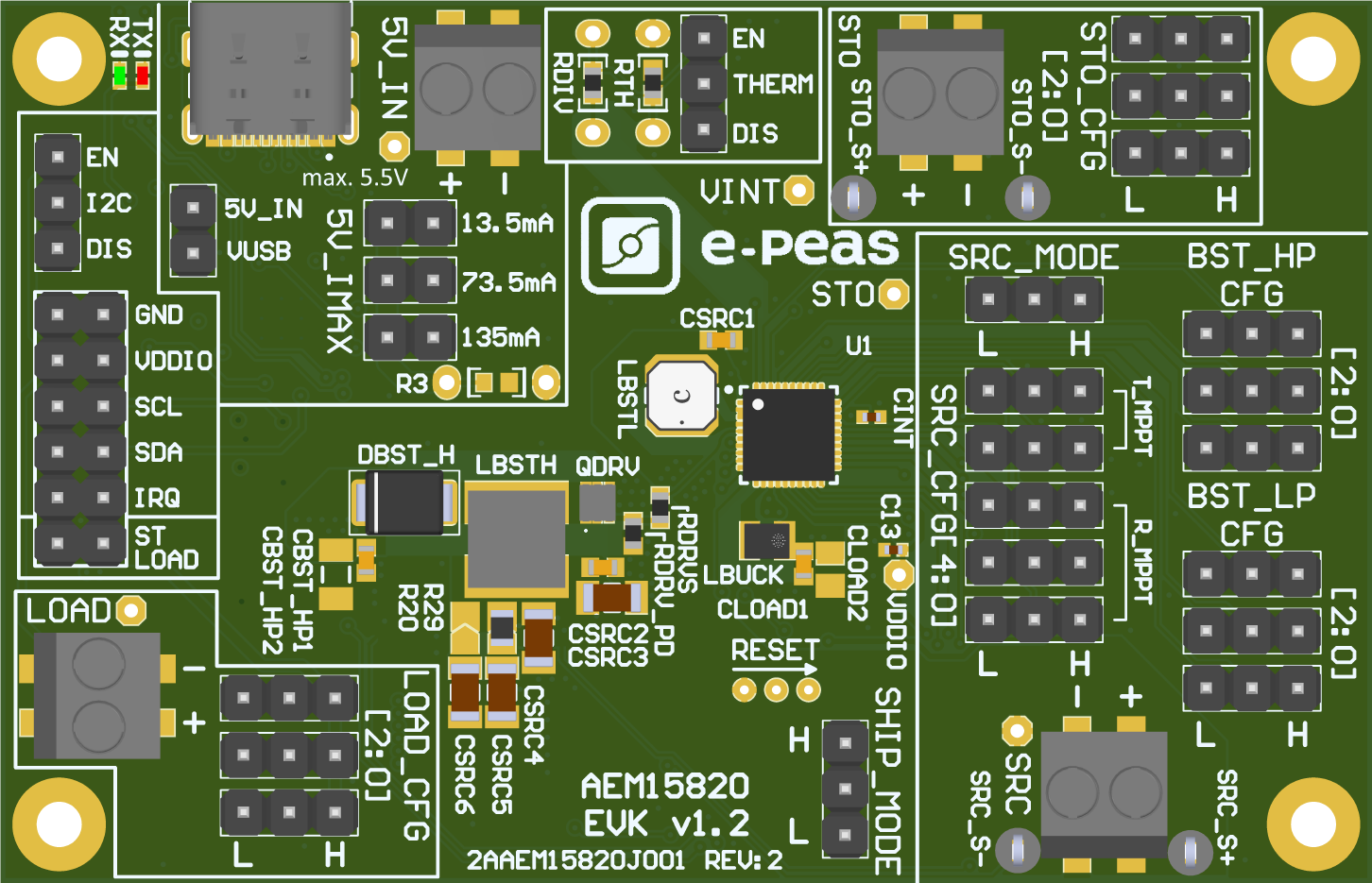

The AEM15820 Evaluation Board (76 mm x 49 mm) offers a complete solution for testing the features and performances of the AEM15820 energy harvesting PMIC in QFN-40 package. It includes the necessary passive components for optimal operation and a set of jumpers for easy configuration.
Designed for flexibility, the board allows full configuration and provides:
- Energy harvester input, with its configuration settings.
- Connection for the storage element, with configurable protection levels.
- Load output with output voltage configuration.
- I²C bus access via a dedicated port for advanced configuration.
- Optional 5 V charging input by USB-C or screw terminal, with maximum current configuration.
- Connection for thermal sensor for thermal protection.
- Shipping mode configuration.
For detailed setup and advanced features, refer to the AEM15820 datasheet and EVK documentation.
Quick start guide
AEM15820 Evaluation Board Quick Start Guide
User guide
AEM15820 Evaluation Board User Guide
How it works
Basic Functionality
Energy Harvesting Sources
Load Regulation
Storage Element Protection
DC-DC VS LDO
I²C Interface
Average Power Monitoring (APM)
